TOP HI-TECH INC.

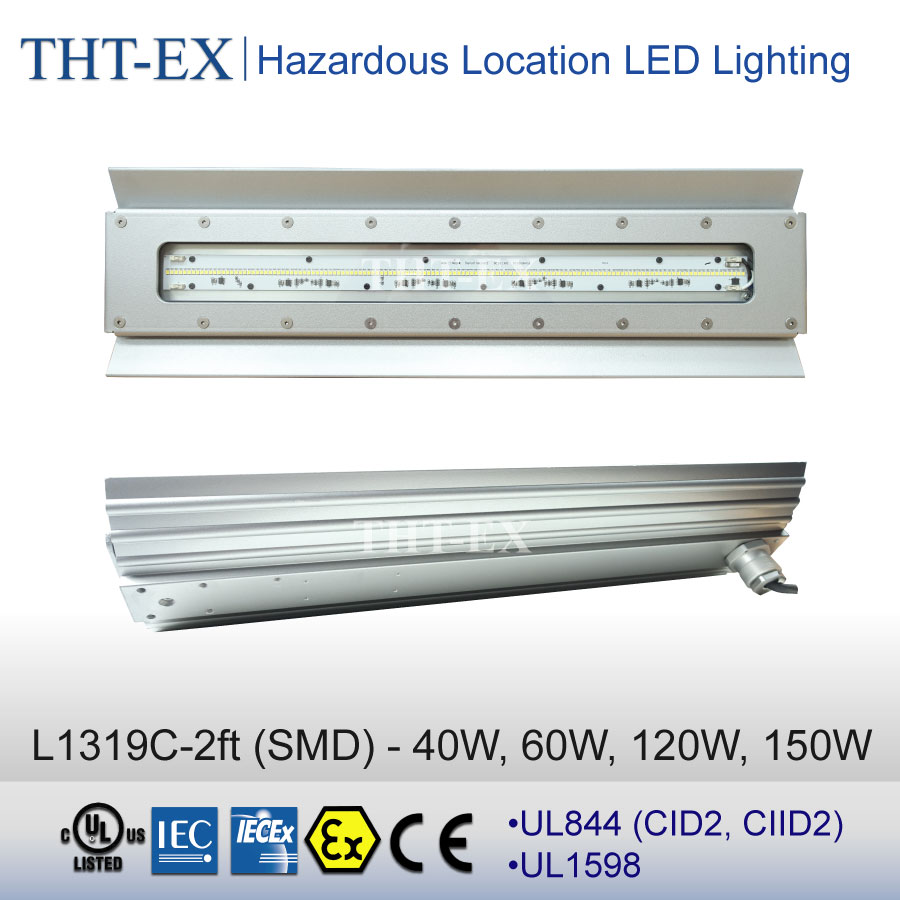

UL844-CID2, 40W, 60W - L1319C (SMD) - 2ft
Features:
  • Model No.:L1319C (SMD)
  • Suitable for various Hazardous Locations
  • LED Lighting provides 2 million times power cycle
  • High corrosion resistance
  • small volume and light weight
  • Easy installation and maintenance
  • Long lifespan
  • IP rating IP67 (NEMA 6)
Listing:
  • ▌★100℃ Heat Resistant★▌
  • UL844 - Class I, Division 2, Group A, B, C and D
  • UL844 - Class II, Division 2, Group F and G (only 40W&60W)
  • UL844 - Class III (only 40W&60W)
  • UL1598
  • Light color: Cool White / Warm White
Show all Hide all
Specification
Electrical Ratings
Voltage

40W&60W: 120V / 277V AC

120W&150W: 100V / 110V / 120V / 200V / 220V / 230V / 277V AC

Frequency 50Hz / 60Hz
Wattage (Amps)

40W(0.14A~0.33A) / 60W (0.22A~0.50A)

120W(0.43A~1.20A) / 150W(0.54A~1.50A)

Ambient Temperature

●40W&60W

CID2:-40℃ ~ +55℃, T4 / CIID2:+55℃, T4A

●120W&150W

CID2:-40℃ ~ +55℃, T3C

Power Factor >0.9
Raw Materials
Net Weight 5.3kg (11.7 lb)
Housing Aluminum Alloy
Screws Stainless Steel
Tempered Glass IEC Standards impact resistant> 4 Joule
Photometrical Information
CCT 5000K±10% / 3000K±10%
CRI >70 (Cool White) / >80 (Warm White)
Lum/Watt. ≧ 100 (Cool White) / ≧ 90 (Warm White)
Beam Angle ≧ 110° (Cool White) /  ≧ 110° (Warm White)
