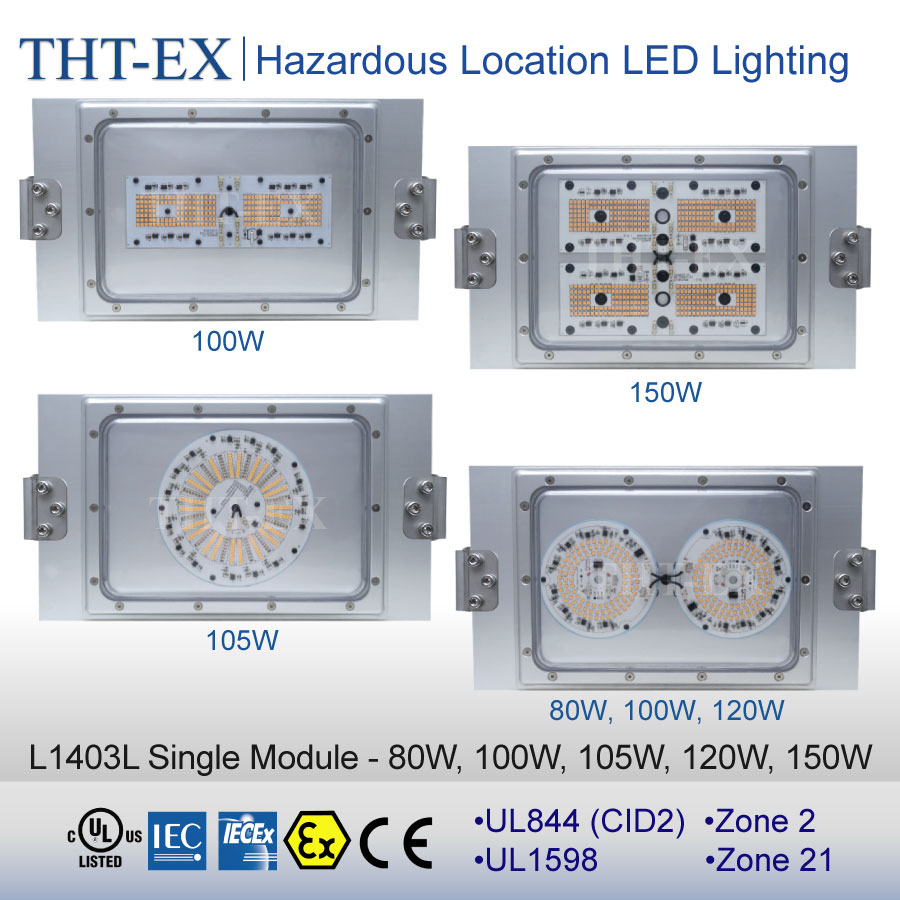

ATEX-80W, 100W, 105W, 120W, 150W - L1403L
Features:
  • Model No.:L1403L(SMD)
  • First Hazardous Location LED Lighting with modularization design.
  • Product uses a transparent PC cover, which is suitable for food processing plants and storage tanks where glass bursting is prohibited.
  • Excellent Lighting Efficiency
  • Service life up to 60,000 hours
  • IP rating IP67 (NEMA 6)
Listing:
  • Zone 2
  • Zone 21
  • II 3 G Ex nR IIC T4...T6 Gc
  • II 2 D Ex tb T110°C...T85°C Db
  • Light color: Cool White / Warm White
Show all Hide all
Specification
Electrical Ratings
Voltage 110V / 220V / 230V / 277V AC
Frequency 50Hz / 60Hz
Wattage (Amps) 80W 110V: 0.73A, 220V: 0.36A, 230V: 0.35A, 277V: 0.29A
100W 110V: 0.91A, 220V: 0.45A, 230V: 0.43A, 277V: 0.36A
105W 110V: 0.95A, 220V: 0.48A, 230V: 0.46A, 277V: 0.38A
120W 110V: 1.09A, 220V: 0.55A, 230V: 0.52A, 277V: 0.43A
150W 110V: 1.36A, 220V: 0.68A, 230V: 0.65A, 277V: 0.54A
Ambient Temperature -20°C ~ +40°C, T6 / -20°C ~ +55°C, T5
Power Factor cos≧0.9
Raw Materials
Net Weight 5.0 kg (11.0 lb)
Housing Aluminum Alloy
Screws Stainless Steel
PC PC cover
Photometrical Information
CCT Circle SMD: 3000K (Warm White) / 5000K (Cool White)
Rectangle SMD: 2700K (Warm White) / 6500K (Cool White)
CRI >70 (Cool White) / >80 (Warm White)
Lum/Watt.
Clear PC: Warm White ≥ 95 / Cool White ≥ 100
Diffuser: Warm White ≥ 85 / Cool White ≥ 90
Beam Angle X-117° / Y-117°
