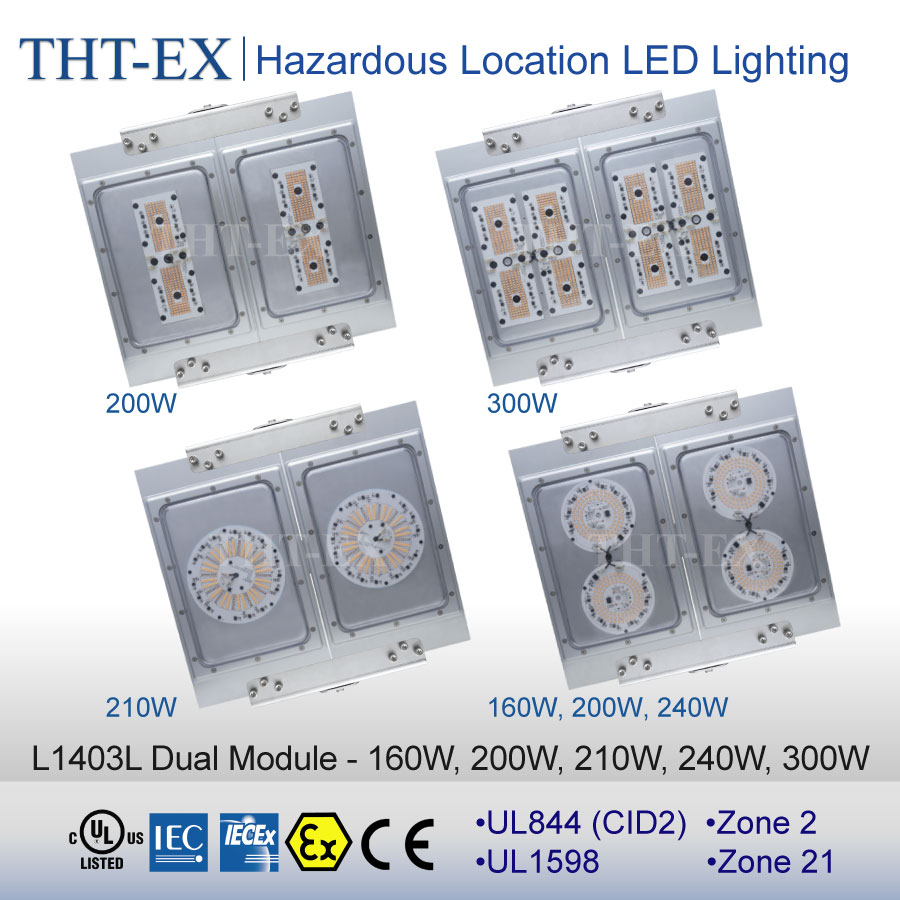

ATEX-160W, 200W, 210W, 240W, 300W - L1403L
Features:
  • Model No.:L1403L(SMD)
  • First Hazardous Location LED Lighting with modularization design.

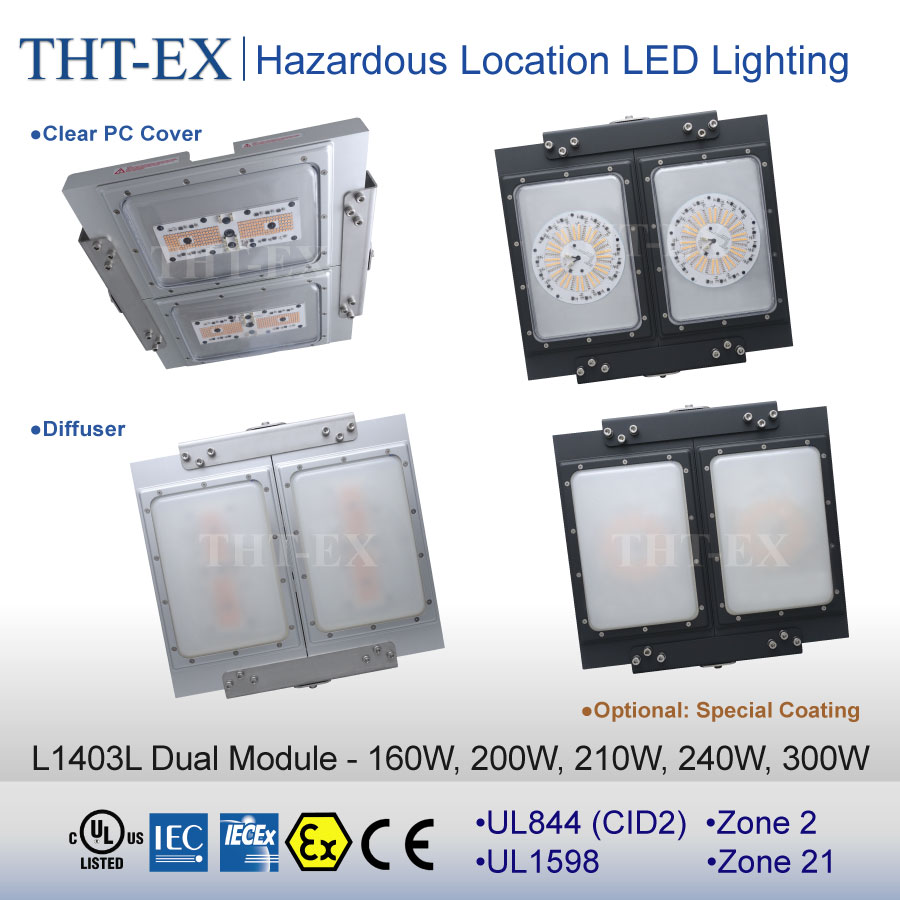

  • Product uses a transparent PC cover, which is suitable for food processing plants and storage tanks where glass bursting is prohibited.
  • Excellent Lighting Efficiency
  • Service life up to 60,000 hours
  • IP rating IP67 (NEMA 6)
Listing:
  • Zone 2
  • Zone 21
  • II 3 G Ex nR IIC T4...T6 Gc
  • II 2 D Ex tb T110°C...T85°C Db
  • Light color: Cool White / Warm White
Show all Hide all
Specification
Electrical Ratings
Voltage 110V / 220V / 230V / 277V AC
Frequency 50Hz / 60Hz
Wattage (Amps) 160W 110V: 1.45A, 220V: 0.73A, 230V: 0.70A, 277V: 0.58A
200W 110V: 1.82A, 220V: 0.91A, 230V: 0.87A, 277V: 0.72A
210W 110V: 1.91A, 220V: 0.95A, 230V: 0.91A, 277V: 0.76A
240W 110V: 2.18A, 220V: 1.09A, 230V: 1.04A, 277V: 0.87A
300W 110V: 2.73A, 220V: 1.36A, 230V: 1.30A, 277V: 1.08A
Ambient Temperature -20°C ~ +40°C, T5 / -20°C ~ +55°C, T4
Power Factor cos≧0.9
Raw Materials
Net Weight 12.0 kg (22.5 lb)
Housing Aluminum Alloy
Screws Stainless Steel
PC PC cover
Photometrical Information
CCT Circle SMD: 3000K (Warm White) / 5000K (Cool White)
Rectangle SMD: 2700K (Warm White) / 6500K (Cool White)
CRI >70 (Cool White) / >80 (Warm White)
Lum/Watt.
Clear PC: Warm White ≥ 95 / Cool White ≥ 100
Diffuser: Warm White ≥ 85 / Cool White ≥ 90
Beam Angle X-117° / Y-117°
