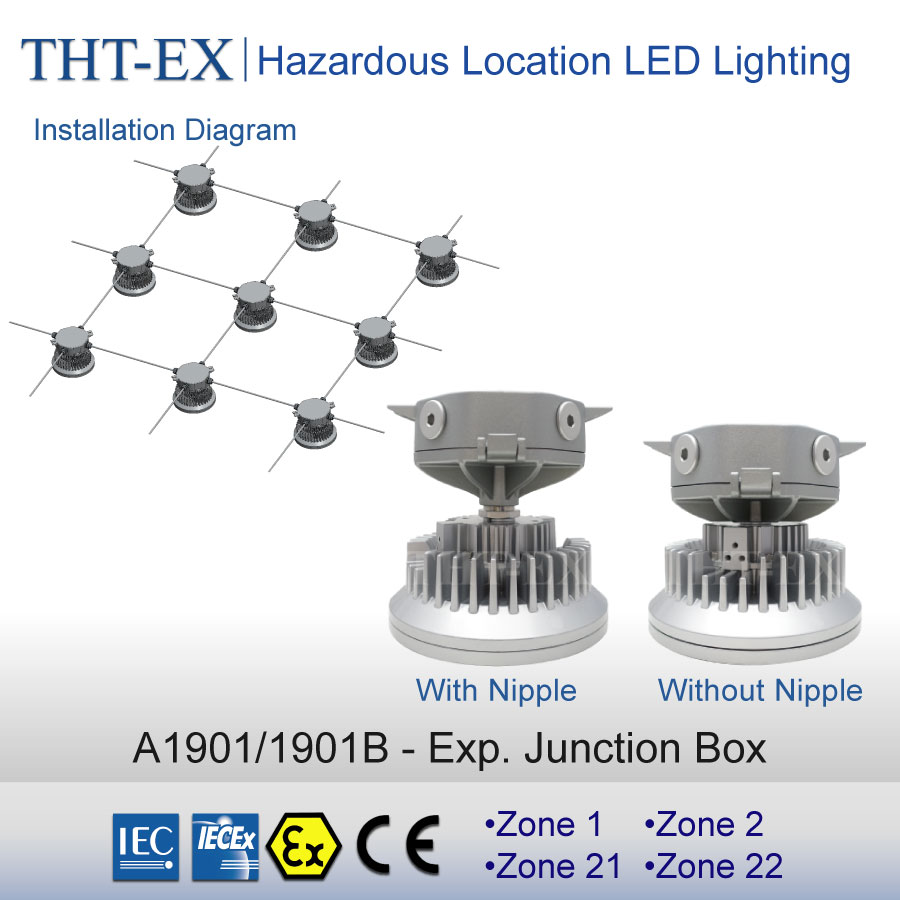

IECEx&ATEX-A1901 (Explosion-proof Junction Box for Lighting)
  • Explosion-Proof, Dustproof and Waterproof IP67
  • Designed for lighting to quick and easy installation
  • Hassle-free of lighting connection via multi-directional box entry
  • Flexible box assembly as per work site requirement
  • Ex eb IIC T5 Gb
  • Ex tb IIIC T95˚C Db
  • II 2 G Ex eb IIC T5 Gb
  • II 2 D Ex tb IIIC T95°C Db
Show all Hide all
Electrical Ratings
Rated Operational Voltage 320V
Connection Terminal Max. Max. 23A
Current Capacity Max. 8A
Cross Sectional Area of Wire Min. 0.2 mm² to 2.5 mm²
Single-core, finely stranded and stranded
Entrance Thread NPT 1/2”, NPT 3/4”, M20, M25
Raw Materials
Net Weight 1.9 kg (4.2 lb)
Enclosure Aluminum alloy
Sealing Gasket Silicone


*Please download brochure for more details.
