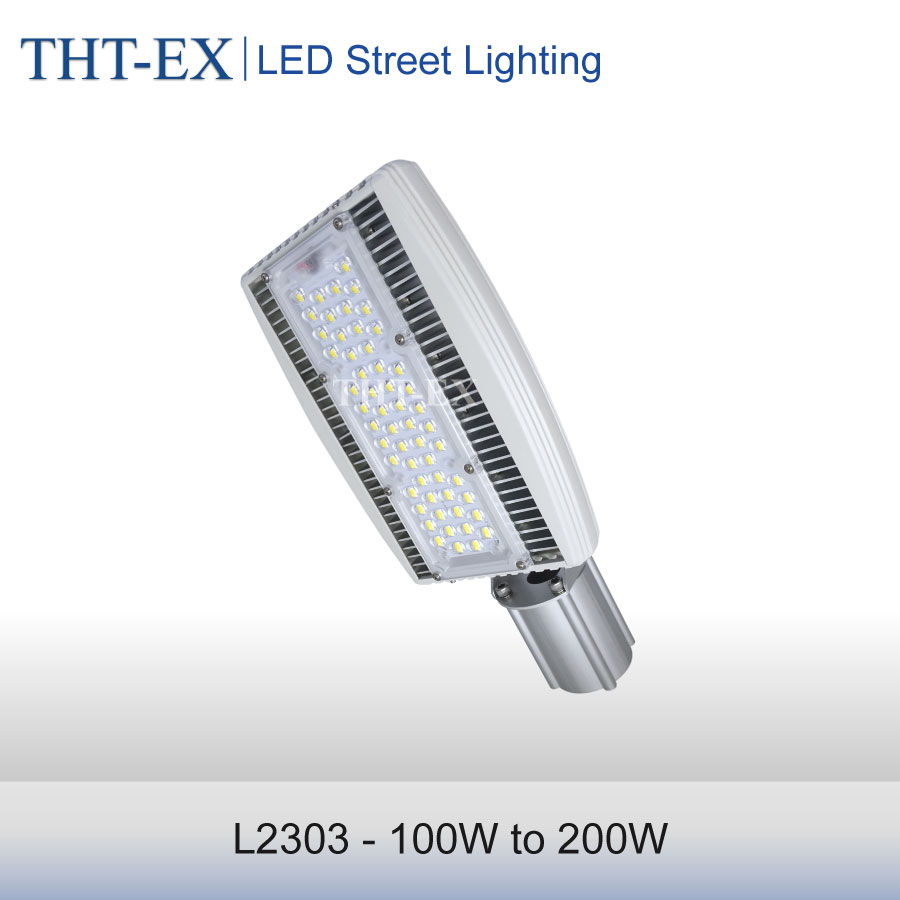

Waterproof-LED Flooding / High Bay / Street Light - L2303
Features:
  • Modular design optimizes construction and assembly, allows for easy maintenance, upgrade and SKD purchasing for local assembly.
  • Aluminium alloy housing with corrosion resistant hardware.
  • Up to 8 beam angle of IK10 Anti-UV optical lens and 2 type of mounting bracket available for various lighting application.
Listing:
  • Ingress Protection Rating: IP67 (IEC 60598-2-3)
  • Surge Protection: 12kV/6kV (IEC 61000-4-5)
  • Impact Resistance Rating: IK10 (IEC 62262)
  • Wind tunnel safety testing approval- up to 60m/s (216 km/h; 135mph) or Mechanical Load: four times the weight (IEC 60598-2-5)
  • Salt Mist Test (IEC 60068-2-1 & IEC 60068-2-52)
  • L70 greater than 54,000 hrs @50°C.
  • DLC Certification is Under Certifying.
Show all Hide all
Specification
Electrical Ratings
Voltage 100V~277V AC
Frequency 50Hz / 60Hz
Wattage (Amps)

100W to 200W Available

(Model L2303 can be configured with modules for a maximum total output of up to 1200W.)
Ambient Temperature -20°C~55°C
Power Factor >0.9
Raw Materials
Net Weight Please refer to catalogue
Housing
Screws
Tempered Glass
Photometrical Information
CCT 3000K(Wram White) / 5000K (Cool White) / Green (Only UL1598)
CRI Ra>70
Lum/Watt. Warm White: 156~143lm/w ; Cool White: 162~150lm/w
Beam Angle 30°, 60°, 90°, 120°, Asymmetric (149°x(25°+50°))
