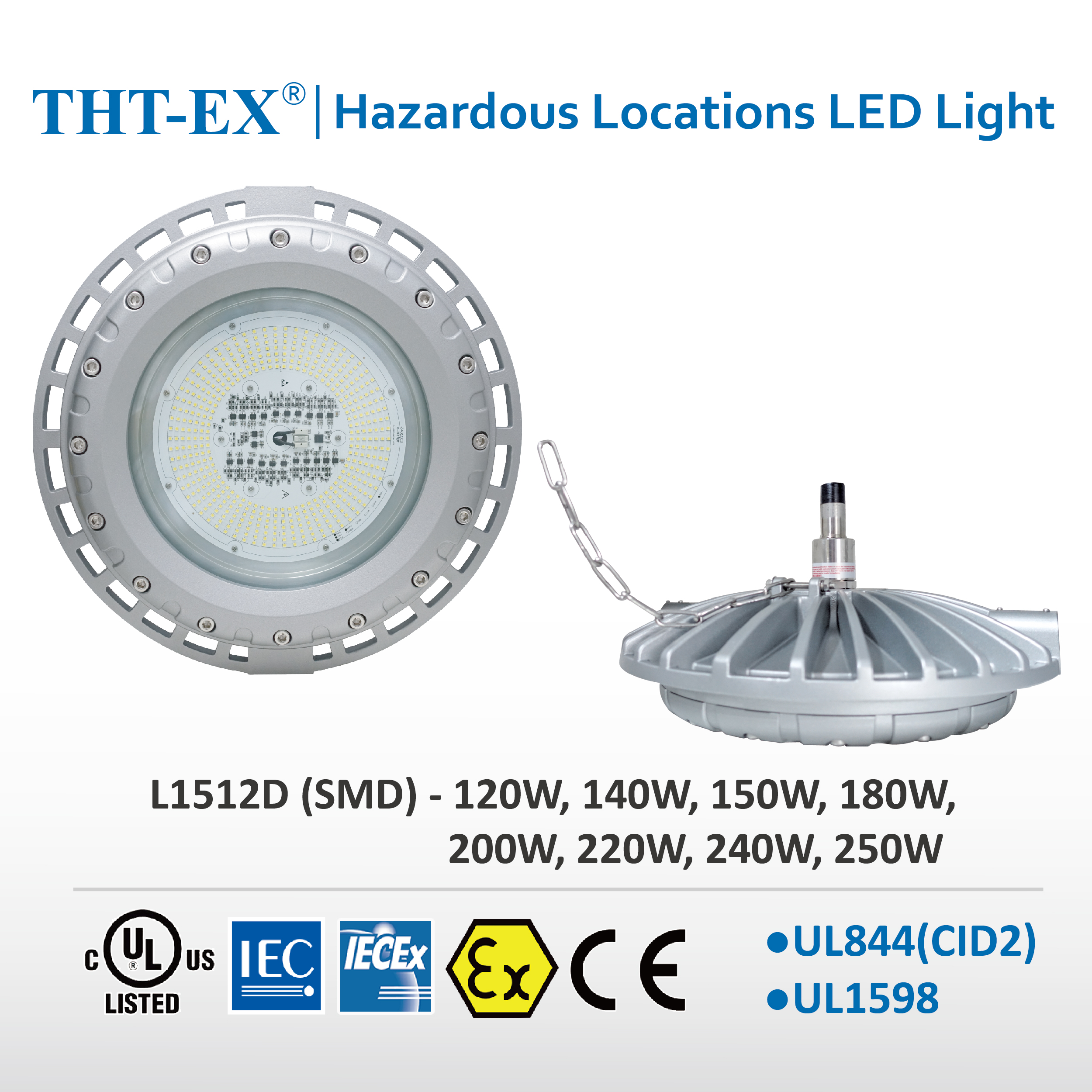

UL844-CID2,120W, 140W, 150W, 180W, 200W, 220W, 240W, 250W-L1512D(SMD)
Features:
  • Model No.：L1512D (SMD)
  • Suitable for various Hazardous Locations
  • LED Lighting provides 2 million times power cycle
  • High corrosion resistance
  • small volume and light weight
  • Easy installation and maintenance
  • Long lifespan
  • IP rating IP67 (NEMA 6)
Listing:
  • ▌★Up to 100℃ Heat Resistant★▌
  • UL844 - Class I, Division 2, Group A, B, C and D
  • UL844 - Class II, Division 1, Group E, F and G
  • UL844 - Class III
  • UL1598
  • Light color: Cool White / Warm White / Green Light
Show all Hide all
Specification
Electrical Ratings
Voltage 110V / 120V / 220V / 230V / 277V
Frequency 50 / 60 Hz
Wattage (Amps) 120W / 140W / 150W / 180W / 200W / 220W / 240W / 250W
Ambient Temperature -25°C ~ +65°C, T4
Power Factor cos≧0.9
Raw Materials
Net Weight Net Weight: 18.3 kg (40.3 lb)
Housing Aluminum Alloy
Screws Stainless Steel
Tempered Glass IEC Standards impact resistant＞ 4 Joule
Photometrical Information
CCT

3000K (Warm White) / 5000K (Cool White) /

Green Light (Green light only for SMD LED Module,180W / 200W / 220W / 240W / 250W only)
CRI Cool White≧70 / Warm White≧80
Lum/Watt. Cool White≧120 / Warm White≧100
Beam Angle X-110° / Y-110°

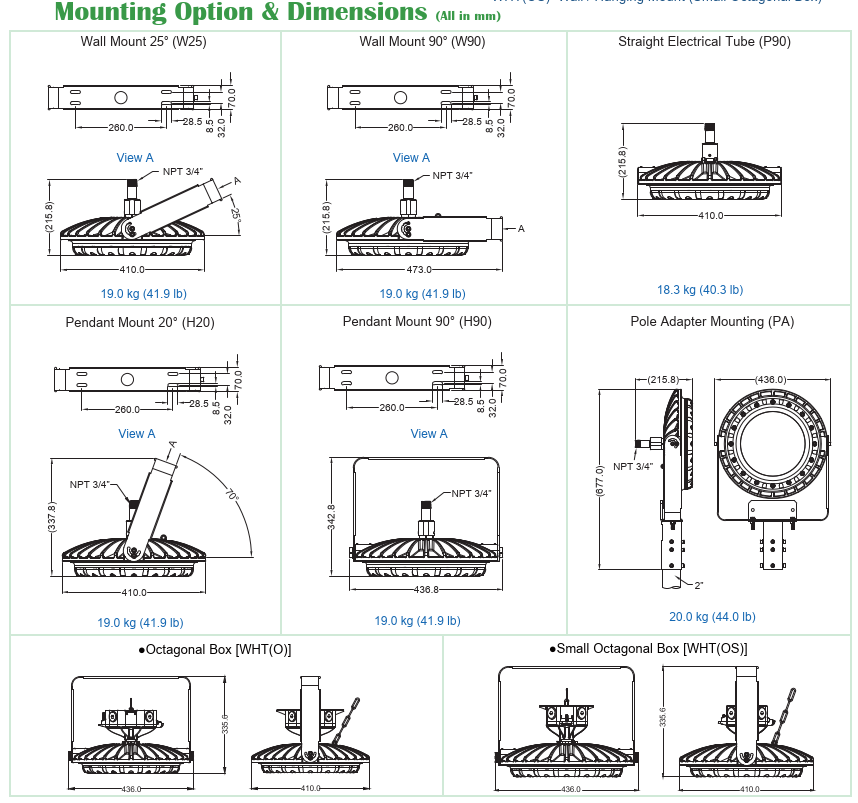

Mounting Style
