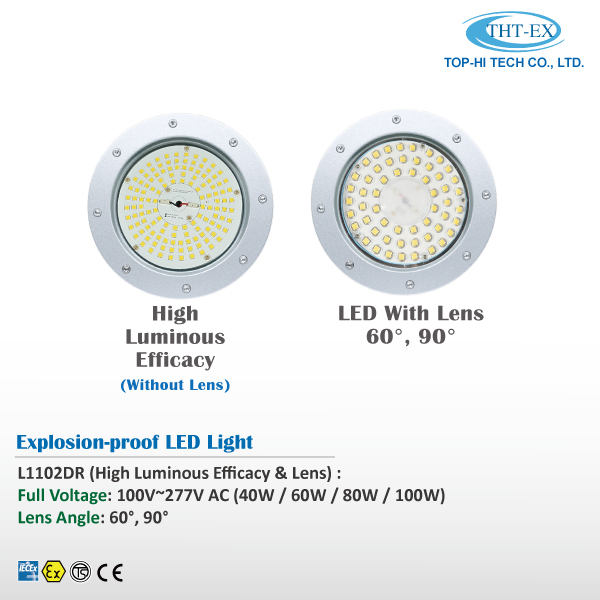

IECEx&ATEX-40W to 100W - L1102DR (SMD)
Features:
  • Model No.: L1102DR
  • High-Lumen Explosion-proof LED Light ，Up to 175 lm/W
  • AC-In LED (Driver-less) technology increases efficiency, reduces maintenance costs & environmentally friendly.
  • Suitable for high humidity and dusty locations.
  • Superior corrosion resistance.
  • Compact size & lightweight 40% less than conventional lighting.
  • Long lifespan
  • IP rating IP67 (NEMA 6)
Listing:
  • Zone 1, Zone 2
  • Zone 21, Zone 22
  • Ex db IIC T5...T4 Gb
  • Ex tb IIIC T95°C...T105°C Db
  • II 2 G Ex db IIC T5...T4 Gb
  • II 2 D Ex tb IIIC T95°C...T105°C Db
  • Light color: Cool White / Warm White
Show all Hide all
Specification
Electrical Ratings
Voltage 100V~277V AC
Frequency 50Hz / 60Hz
Wattage (Amps) 40W / 60W / 80W / 100W
Ambient Temperature -20°C ~ +40°C, T5 / -20°C ~ +50°C, T4
Power Factor cos≧0.9
Raw Materials
Net Weight
  5.8 kg (12.8 lb)
Housing Aluminum Alloy
Screws
  Stainless Steel
Tempered Glass IEC Standards impact resistant＞ 4 Joule
Photometrical Information
CCT
  5000K±10% / 3000K±10%
CRI Cool White≧70 / Warm White≧80
Lum/Watt. 170~175 lm/w
Beam Angle X-116° / Y-116°(LED Without Lens)
Mounting Style
