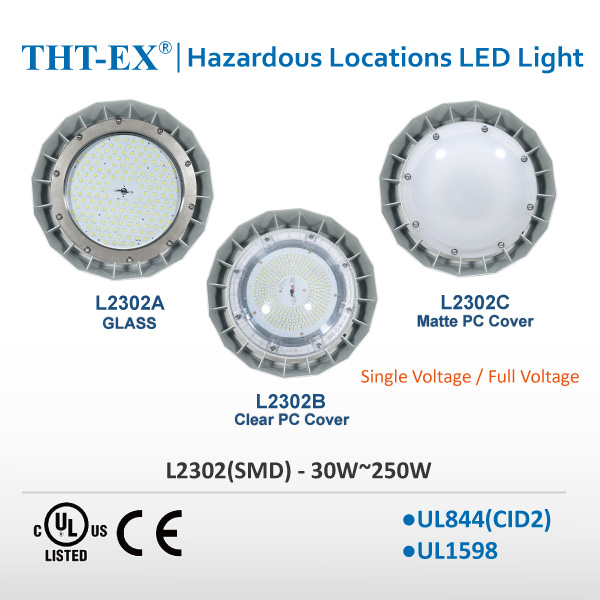

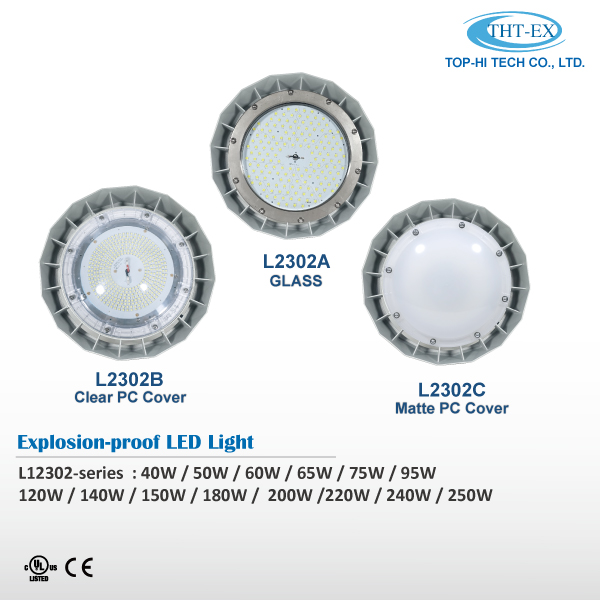

UL844-CID2, 40W to 250W-L2302-series
Features:
  • Model No.：L2302
  • Provide safe illumination in hazardous and wet locations
  • With protection guard and reflector
  • High luminous efficiency and low conversion loss rate
  • Long lifespan
  • IP rating IP67 (NEMA 6)
Listing:
  • UL844 - Class I, Division 2 (Group A, B, C, D)
  • UL1598
  • Light color: Cool White / Warm White
Show all Hide all
Specification
Electrical Ratings
Voltage Single Voltage: 110 / 120 / 220 / 230 / 277 Vac
Frequency 50 / 60 Hz
Wattage (Amps)

Single Voltage:

40W / 50W / 60W ①
65W / 75W / 95W ②
120W / 140W ③

150W ④

-20°C ~ +90°C, T3C ①
-20°C ~ +90°C, T3B  ②
-20°C ~ +93°C, T3C ③

-20°C ~ +84°C, T3A ④
Ambient Temperature



180W ①
200W /220W / 240W ②
250W ③

-20°C ~ +79°C, T3B ①
-20°C ~ +69°C, T3A ②
-20°C ~ +63°C,T3B ③
Power Factor cos≧0.9
Raw Materials
Net Weight Net Weight: 5.5 kg (12.1 lb)
Housing Aluminum alloy
Screws Stainless Steel
Tempered Glass Glass / PC
Photometrical Information
CCT 3000K (Warm White)
5000K (Cool White)
CRI Cool White≧70 / Warm White≧80
Lum/Watt. Clear PC Cover: 140 lm/w ; Matte PC Cover: 125 lm/w    (Greenlight additionally offers)
Beam Angle X-110° / Y-110°

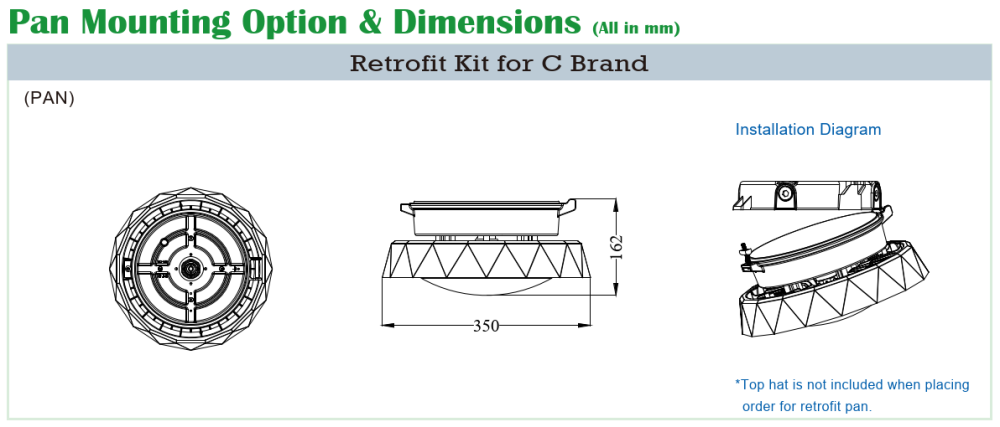

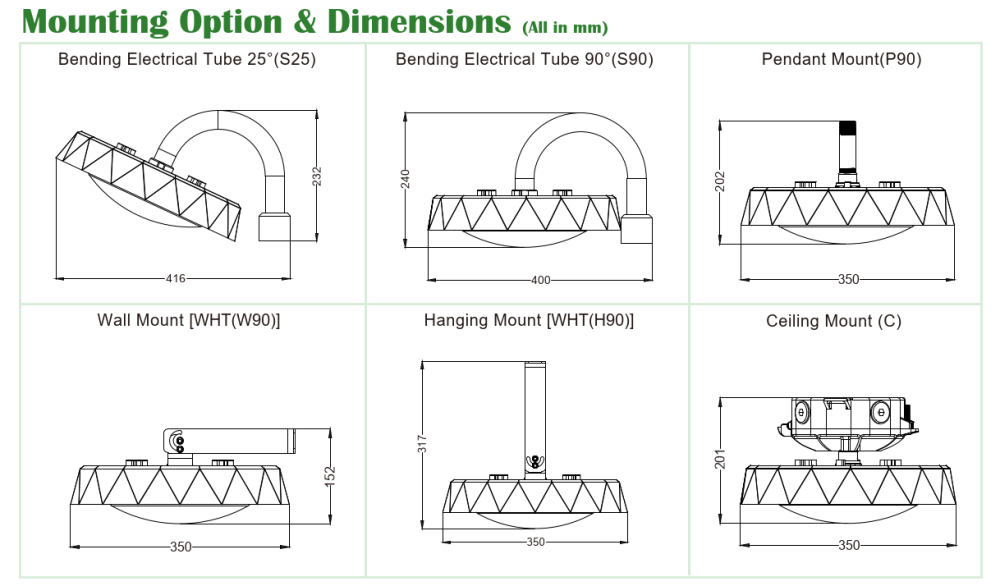

Mounting Style

Brochure
Certification
IES Files
Installation Manual
